Details:

RFID tree nail tag is a kind of tag that can internally encapsulate chip of low frequency, high frequency, and ultra-high
frequency. It is packaged in a rugged ABS plastic shell. Appearance is small, it's strong and durable. Suitable for installation in cement products, plastic products, wood products, etc.



More information:

product description:

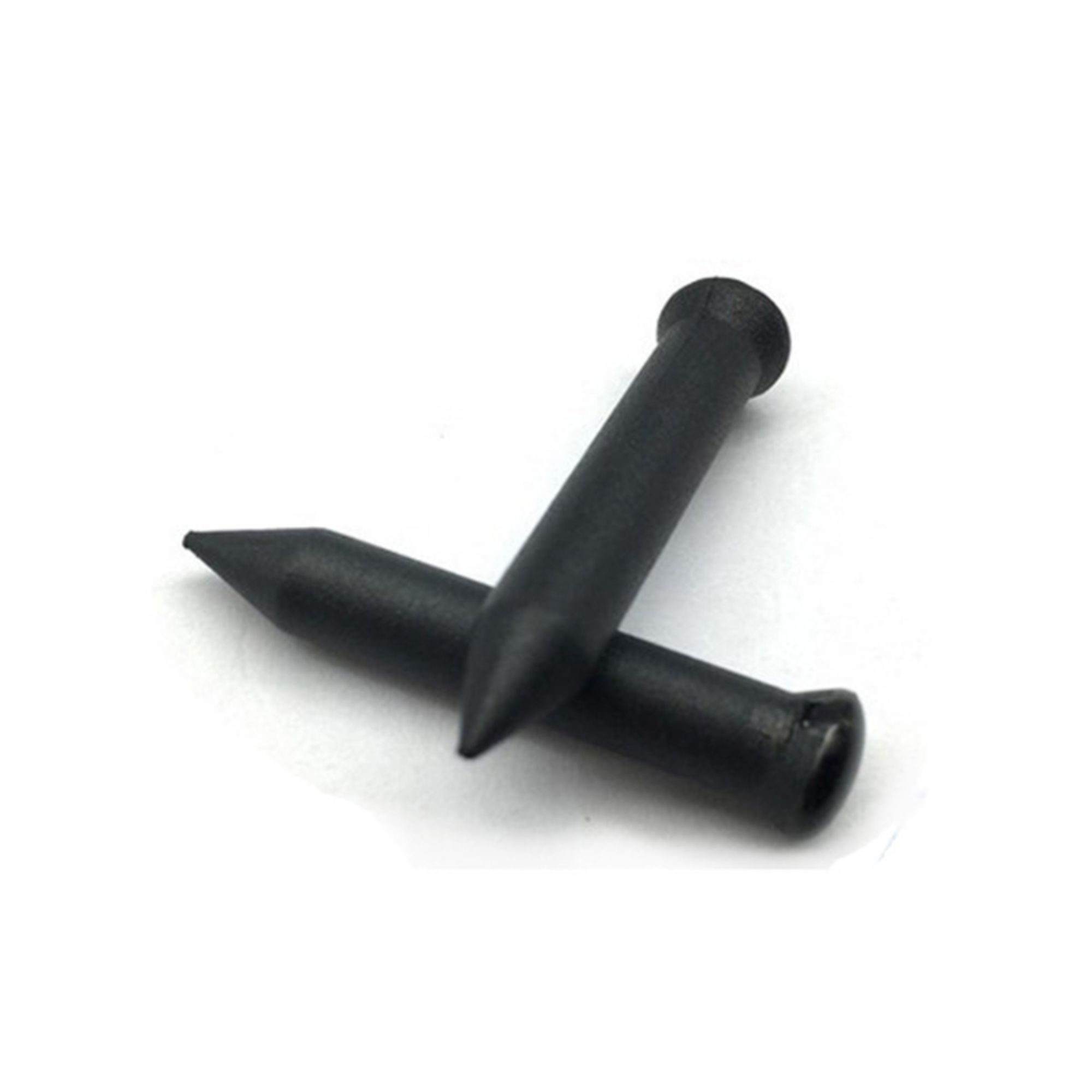

This label is packaged in a rugged ABS plastic case, which is compact and durable.

After drilling holes on the surface of the object, nail it with a rubber hammer,

and it is suitable for installation on cement products, prefabricated parts, plastic products, trees and other non-metallic objects.

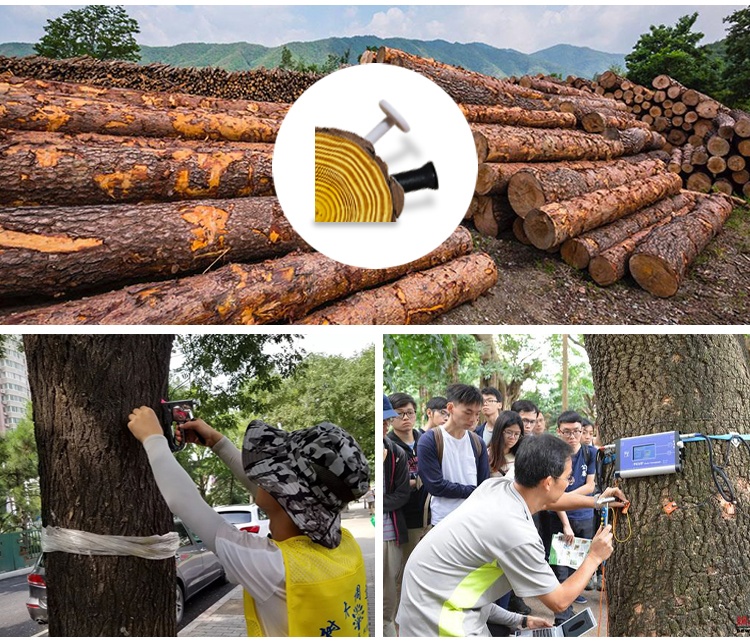

RFID Nail tag for tree & wood Identification and tracking The RFID Nail Tag can be nailed into any type of wood, suitable for any kind of pallets, trees and wood; it is rust-resistant in wet and chemical environment. The top side of the nail is filled with hard ABS, the nail tag is completely water/dust proof.

It is available in 125 kHz, 13.56 MHz, and UHF 860-960 MHz. The installing method is putting the nail tag in the good after drilling a hole in the goods surface. The diameter of the hole is suggested to be smaller than 5*33mm, and should be knocked in by rubber hammer. It can be used in the non-metallic products like cement, prefabricated product, plastics and wood.



Parameter:

Parameter

Description

Key Features:
Available in multiple frequencies: 125 KHz, 13.56 MHz or UHF 860-960 MHz
ABS material with IP68 rating

Chip

TK4100, F08, M4E etc.

Protocol

ISO14443A/ISO15693, ISO18000-6C

Size

41*28mm(as picture), 40*12mm

Memory

64bit, 1Kbyte, 96bit etc.

Frequency

125khz, 13.56MHz, 860~960mhz

Material

ABS

Write Endurance

≥100000 cycles

Read Range

0-2m(depends on the reader and antenna)

Aplication

Data Transfer, Access control, Payment management, Customized, etc.

Optional craft

Color

Black, White

Carft

Encoding

Package

Type

100pcs/bag, 2000pcs/ctn

Volume

Box: 39x27x7cm, carton: 50x45x35cm

Quantity

200pcs/box, 1000pcs/ctn

Weight

6kg/ctn
